15–35kW High Voltage Coolant Heater
Wide-voltage coolant heating solution designed for 400–1100V electric vehicle platforms with CAN control and integrated high-voltage protection.
15–35kW+
400–1100V
CAN Control
IP67
Product Overview
High Voltage Coolant Heater for Wide-Voltage EV Platforms
This High Voltage Coolant Heater is designed for electric vehicle platforms requiring 15–35kW heating capacity and a wide 400–1100V operating voltage range. Integrated CAN communication, PID control and multiple electrical protection functions support stable vehicle-level thermal management and flexible system integration
Product Views

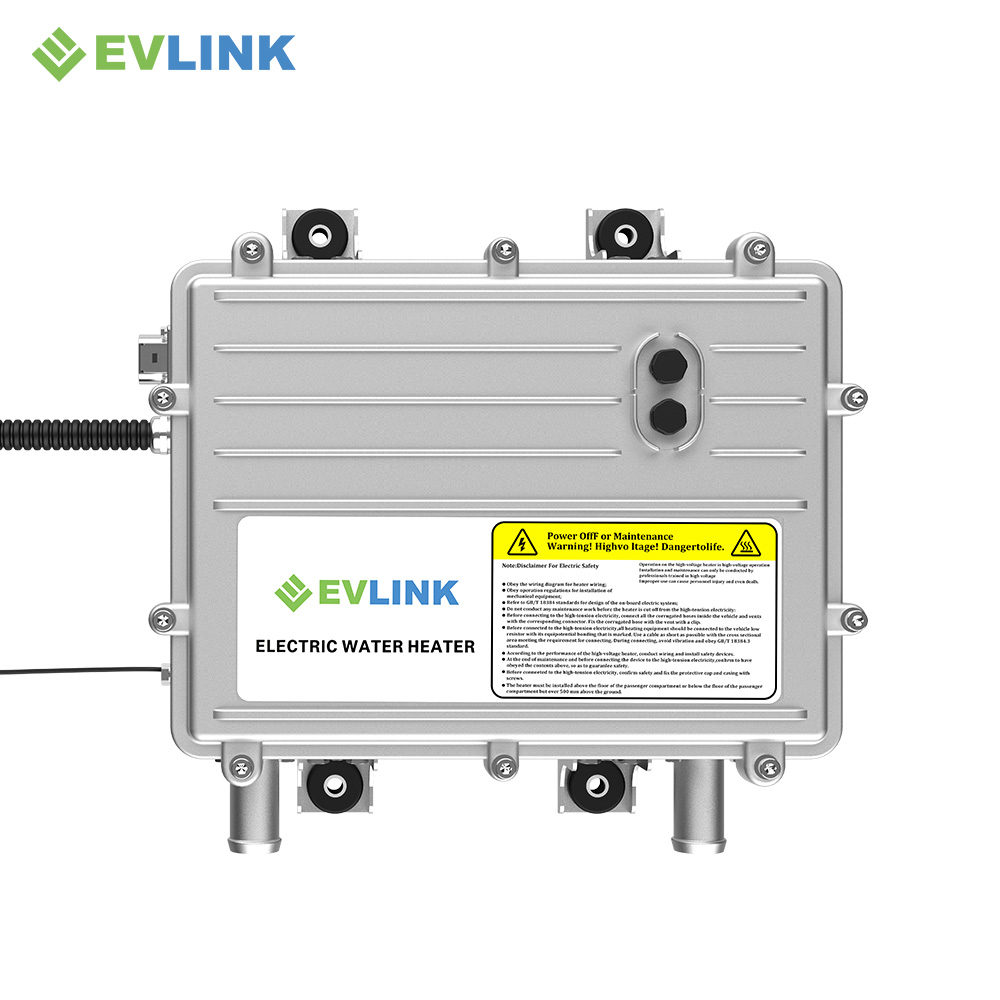

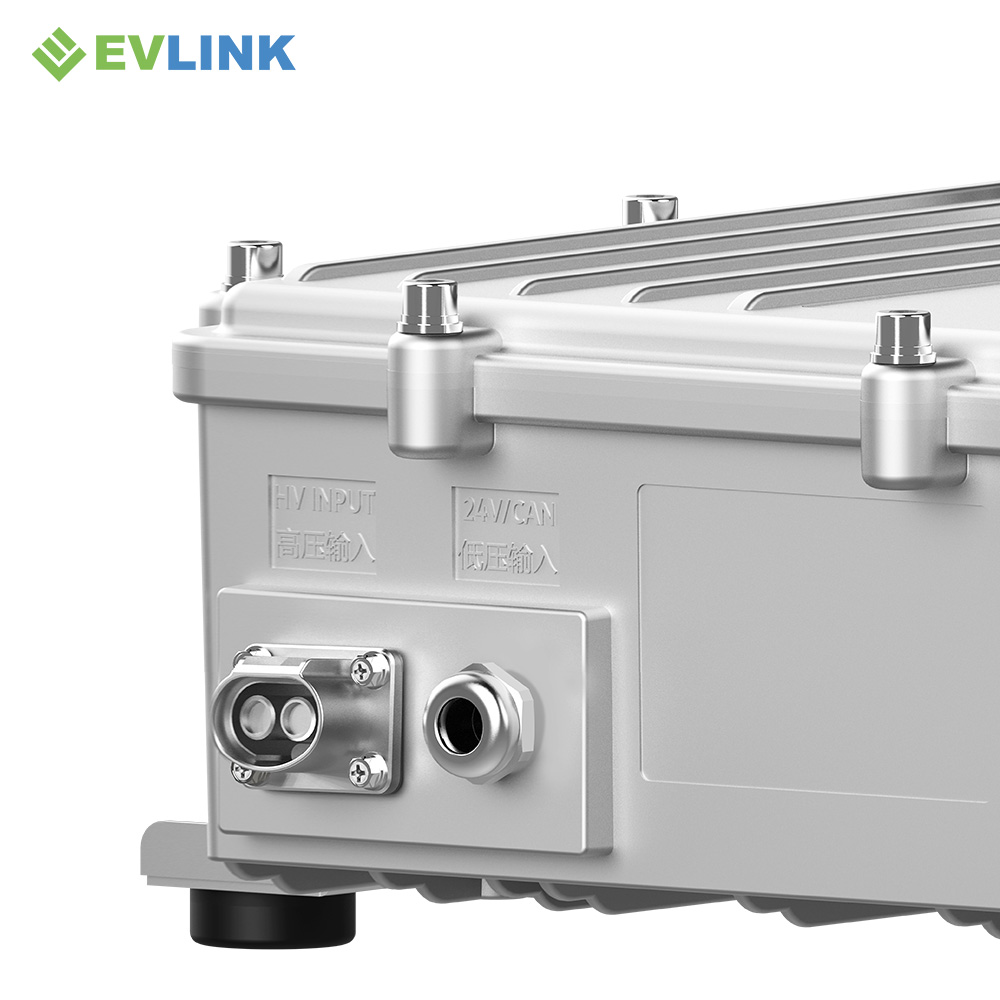

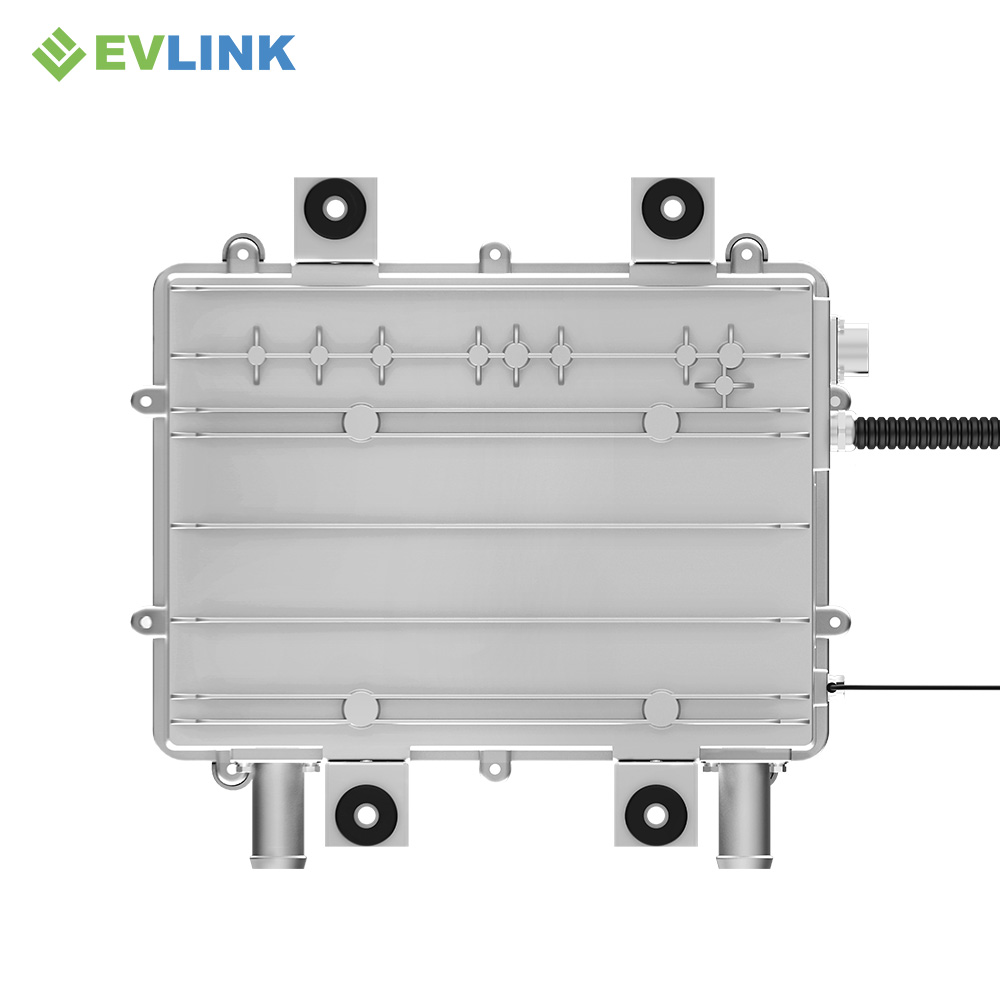

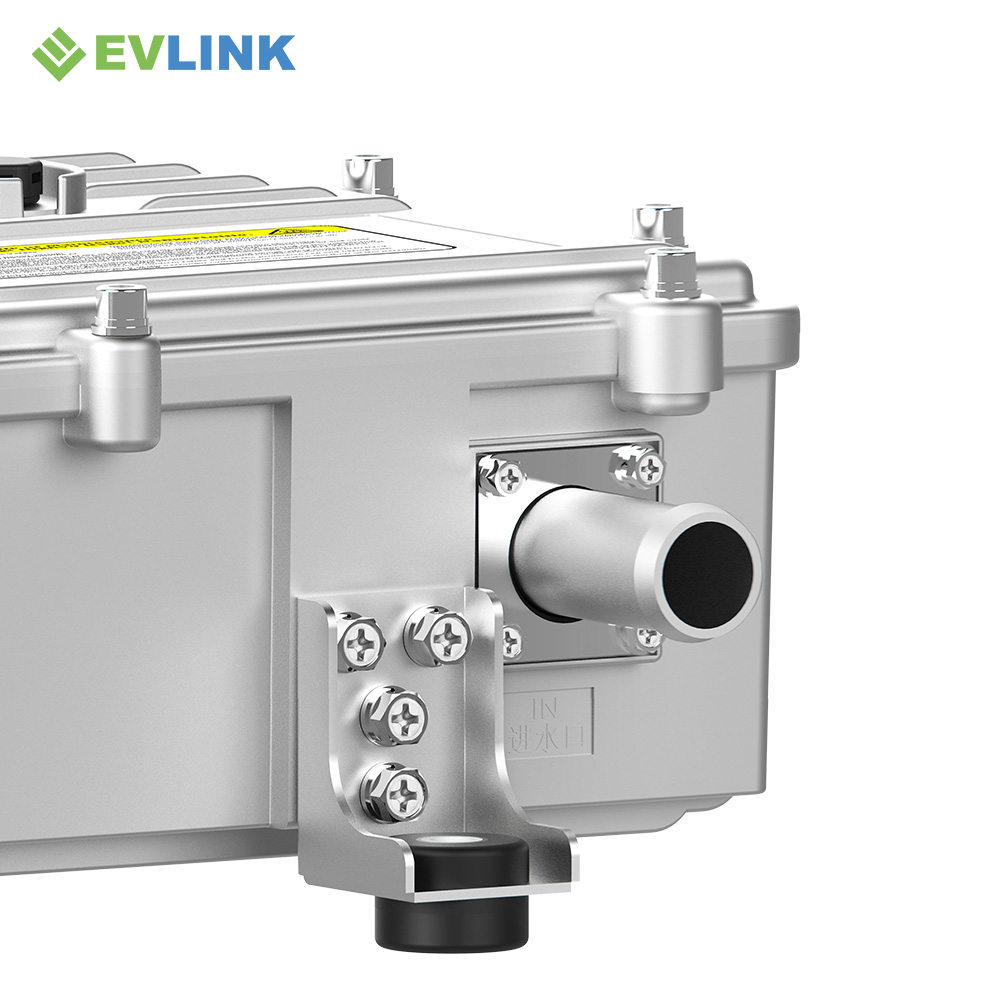

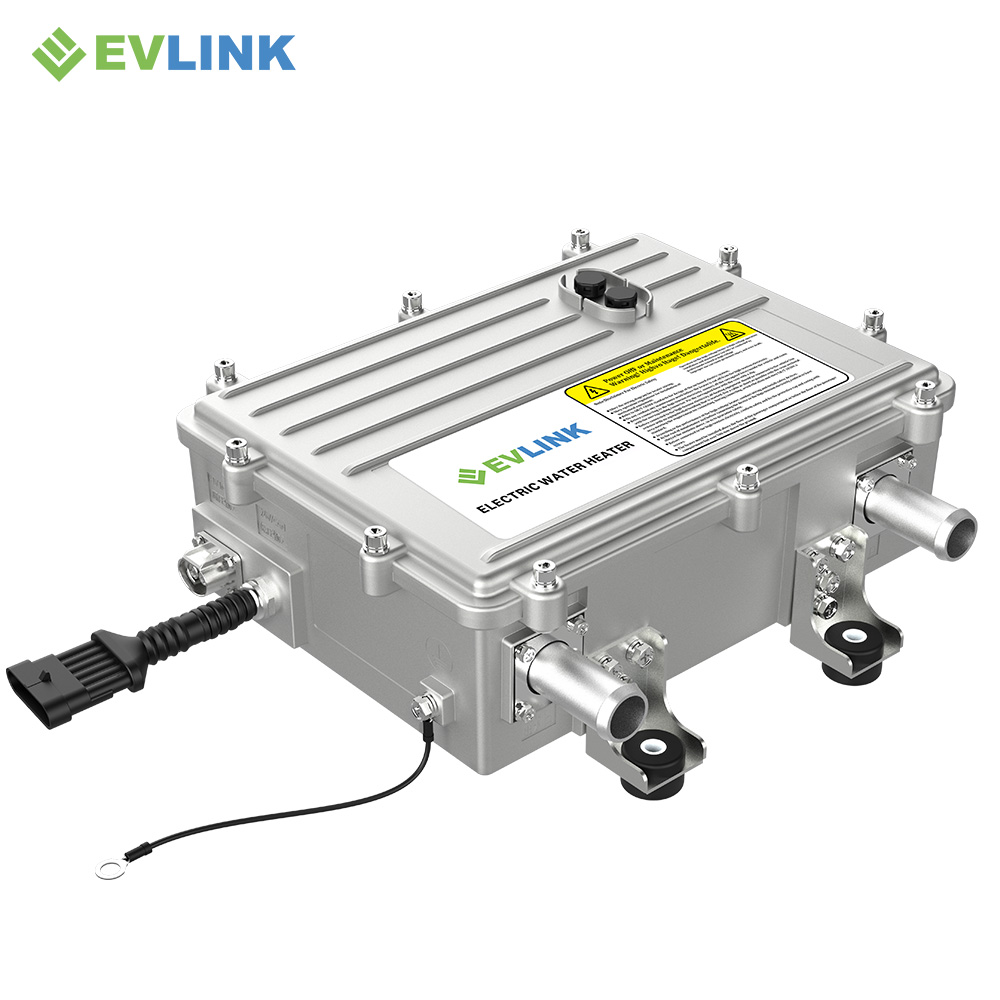

High Voltage Coolant Heater Product Views
Core Specifications
TECHNICAL DATA
WIDE VOLTAGE PLATFORM
400–1100V High Voltage Coolant Heater
A wide 400–1100V operating range allows this heater configuration to support different high-voltage vehicle architectures while reducing the need for multiple heater platforms across different projects.
400–1100V Operation
Wide operating voltage range for different EV platforms
Custom Rated Voltage
Rated voltage can be configured according to project requirements
15–35kW Heating Range
Multiple heating power configurations for different thermal loads
How It Works
How Does This High Voltage Coolant Heater Work?
High-voltage electrical energy is converted into thermal energy inside the heater and transferred to the coolant flowing through the unit, while CAN and PID control coordinate heating output with the vehicle thermal management system
High-Voltage Safety
Integrated High-Voltage Protection
Multiple protection functions support controlled operation under abnormal electrical and thermal conditions
Overvoltage Protection
Undervoltage Protection
Overcurrent Protection
Short-Circuit Protection
Overheat Protection
Insulation Protection
Electrical Safety Performance
Electrical Safety Designed for High-Voltage Systems
≥100 MΩ
Insulation Resistance
Measured at DC 1000V in the high-voltage section.
≥1200 V
Dielectric Strength
Ceramic heating element dielectric withstand capability.
≤1.5×
Peak Current
Peak current controlled within 1.5 times rated current.
Applications
Electric Commercial Vehicles
Thermal management for battery systems used in electric commercial vehicle platforms.
Electric Buses
Designed for integration with liquid-cooled battery systems in electric bus applications.
Electric Trucks
Supports battery cooling requirements for electric truck thermal management systems.
Special-Purpose EVs
Suitable for EV platforms requiring compact liquid cooling and intelligent thermal control.
CAN & Intelligent Control
CAN-Controlled Coolant Heating
CAN Bus communication and enable control support vehicle-level heater management, while PID control regulates heating output according to system requirements
CAN Bus
Vehicle-level communication and control.
PID Control
Controlled heating output based on thermal requirements.
Fault Self-Diagnosis
Integrated fault monitoring supports system diagnostics.
Automatic Power Limiting
Automatically limits heating output under defined operating conditions.
Customization
CUSTOM ENGINEERING
Custom High Voltage Coolant Heater Configuration
Voltage, heating power, electrical connectors, coolant interfaces and CAN communication can be configured according to vehicle project requirements
Rated Voltage
Heating Power
HV Connector
Coolant Interface
CAN Protocol
Certification
Automotive Safety & Compliance
ISO 26262 Functional Safety
TÜV Rheinland CE / LVD
SGS / UL 499
IATF 16949:2016
ISO 14001:2015
Certification applicability may vary according to product configuration and target market requirements.
FAQ
15–35kW High Voltage Coolant Heater FAQs
1. What is the operating voltage range of this heater?
The heater supports an operating voltage range of 400–1100V, while rated voltage can be customized according to vehicle requirements.
2. What heating power is available?
This product platform supports 15–35kW rated heating power.
3. Does this coolant heater support CAN control?
Yes. CAN Bus communication and enable control are supported for vehicle-level system integration.
4. What high-voltage protection functions are included?
The heater includes overvoltage, undervoltage, overcurrent, short-circuit and overtemperature protection.
5. What is the insulation resistance?
The specified insulation resistance is ≥100 MΩ at DC 1000V for the high-voltage section.
6. Can the voltage and interfaces be customized?
Yes. Rated voltage, heating power, connectors, coolant interfaces and communication configuration can be evaluated according to project requirements.
